Description:

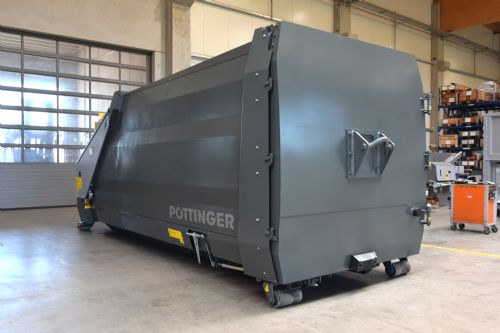

Conical-design press container including fold-down hooks at the front, polyamide castors at the rear, conical side walls (3 x 100 mm each), controls, power connection and plug for a separate control panel at the front right, pre-full and full indicators, safety switch for maintenance door, automatic phase reversal, low-noise pump >59 dB(A), operating hours counter, press position optionally open or closed, bottom frame reinforcement, sloping press floor, retaining tines, discharge pipe with Storz coupling C-52, container step 163 mm, scraper strip on piston base, domed press plate made of wear-resistant steel
(ROC 401), partial rear seal 1 m high, sandblasted, powder-coated with primer and top coat powder, 120 μm, CE Declaration of Conformity, 5.5 kW, 400 V
Features
Discharge door with 8-point locking and door catch safety device, standard press hood opening rearwards for bottom loading, front hook DIN 1570 mm, rear hook DIN 1570 mm with stop, designed as a towing hook for manoeuvring and transporting the machine, front polyamide rollers DIN,
Comb adapter for 80–360 l containers, standard EN 840-1, factory-set to the smallest container, DIN municipal mounting for 660–1100 l containers, pin mounting, all-round rear wall seal, dirt deflector on piston base, telescopic scraper strip 1.4
Operating hours: 2193h
Paint finish: RAL 7043 Traffic Grey B
Standard: DIN
Delivery time: by arrangement
