Description:

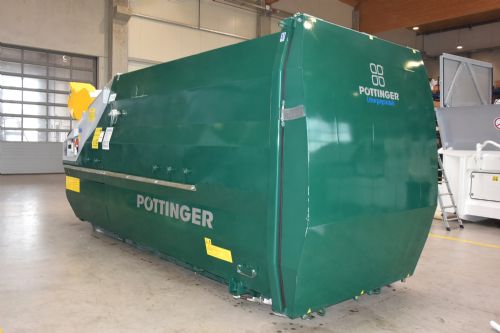

Conical-design compactor for tipping trailer
Sloping side walls (3 x 80 mm each)
Controls and power connection on the right, pre-full and full indicators
Automatic phase reversal
Low-noise pump <59 dB(A)
Safety switch for maintenance door, operating hours counter
Press position optionally open or closed
Discharge flap with 6-point locking
Partial seal at the rear, 1 m high, scraper strips for telescopic plates, scraper strip on the piston base, retaining tines
Container step 250 mm
Discharge pipe with Storz coupling C-52
Sloping press base, curved press plate made of wear-resistant steel (ROC 401), galvanised angle profiles under mounting pins
Sandblasted, powder-coated, primer and top coat powder with min. 120μ
CE Declaration of Conformity, 5.5kW, 400V
Straight press hood, dirt deflector on piston base
Equipment
Lifting and tipping mechanism to DIN municipal standard for 660–1100 l containers, pin mount, basic tipping mechanism, right-hand operation, two-hand control, safety guard for hose connections, colour RAL 1003 signal yellow, Hydraulic comb adapter for 80–1100 litre bins, bins, standards 840-1/ 840-2/ 840-3, automatically adjusts to the respective bin size
Operating hours: 139h
Paint finish: RAL 6005 Moss Green
Standard: DIN
Delivery time: by arrangement
