Description:

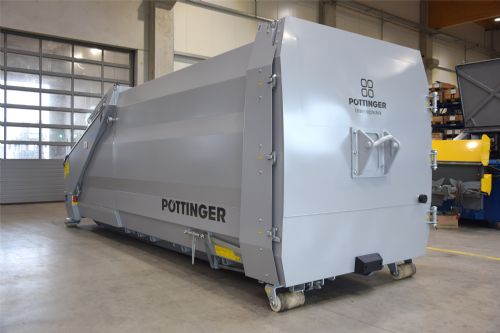

Conical-design baling container
including front-folding hook, polyamide castors at the rear,
conical side walls (3 x 100 mm each), controls,
power connection and plug for separate control panel
on the front right, pre-fill and full indicators, safety switch
for maintenance flap, automatic phase reversal,
operating hours counter, press position optionally open or
closed, frame reinforcement at the bottom, angled
retaining tines, discharge pipe with Storz coupling C-52,
container step 152 mm, scraper strip on piston base,
domed press plate made of wear-resistant
steel (ROC 401), partial seal at rear 1 m high,
sandblasted, powder-coated to min. 120 μm,

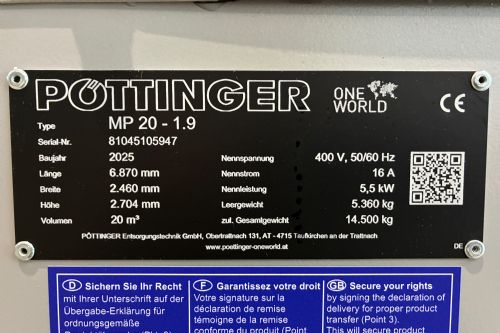

CE declaration of conformity, 5.5 kW, 400 V
Discharge door with 8-point locking and door catch, press hood straight for floor loading, rear hook DIN 1570 mm with stop, designed as a towing hook, for manoeuvring and transporting the machine, front polyamide rollers DIN, telescopic scraper plate 1.9, dirt deflector on piston base, frame reinforcement at the bottom
Operating hours: 9 h
Paint finish: RAL 9006 Pöttinger Silver
Standard: DIN
Delivery time: by arrangement
