Description:

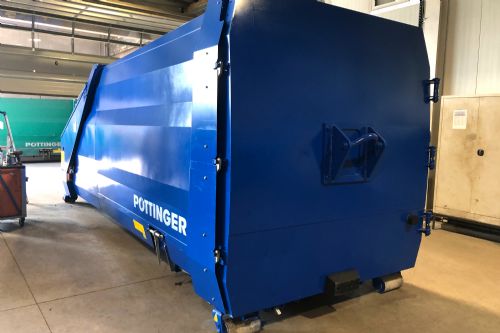

Conical press container
including fold-down hooks at the front, polyamide castors at the rear,
conical side walls (3 x 100 mm each), controls,
power connection and plug for separate control panel
on the front right, pre-full and full indicators, safety switch
for maintenance door, automatic phase reversal,
operating hours counter, press position optionally open or
closed, frame reinforcement at the bottom, slanted
retaining tines, discharge pipe with Storz coupling C-52,
container step 152 mm, scraper strip on piston base,
domed press plate made of wear-resistant
steel (ROC 401), partial seal at rear 1 m high,
sandblasted, powder-coated to min. 120 μm,
CE Declaration of Conformity, 5.5 kW, 400 V
Features
Discharge door with 8-point locking and door catch, standard press hood opening rearwards for bottom loading, polyamide rollers at the front to DIN standard, hook at the rear to DIN 1570 mm with stop, designed as a towing hook, for manoeuvring and transporting the machine, hook at the front to DIN 1570 mm, DIN municipal mounting for 660–1100 l containers, pin mounting, comb adapter for 80–360 l containers, standard EN 840-1, factory-set to the smallest container
Scraper bar, telescopic plate 1.9
Dirt deflector, piston base
All-round rear wall seal
Operating hours: 1219h
Paint finish: RAL 5010 Gentian Blue
Standard: DIN
Delivery time: by arrangement
