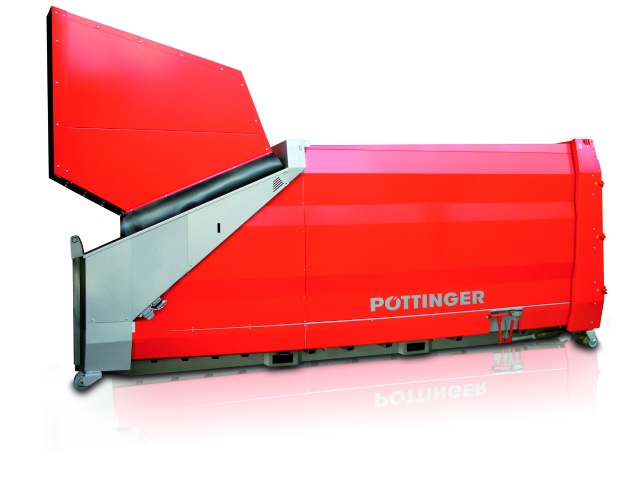

Innovative pressing technology for optimum compaction
The standard waste press for industrial waste as well as for carton and plastic foil. The press container is also available as a liquid proof version for residual waste with high rate of liquids.

Technology
Technical data
MULTIPRESS 1.4 | 16-1.4 NG | 20-1.4 NG | 24-1.4 NG |
---|---|---|---|
Volume Container | 16 m³ | 20 m³ | 24 m³ |
Length (without rear hook) | 5670 mm | 6470 mm | 7270 mm |
Length (with rear hook) | 5870 mm | 6670 mm | 7470 mm |
Width x Height | 2460 x 2704 mm | 2460 x 2704 mm | 2460 x 2704 mm |
Height of opening | 1400 mm | 1400 mm | 1400 mm |
Volume/stroke | 1,4 m³ | 1,4 m³ | 1,4 m³ |
Hight of press ram | 700 mm | 700 mm | 700 mm |
Feed opening WxL | 1860 x 1050 mm | 1860 x 1050 mm | 1860 x 1050 mm |
Filling opening W x L | 1860 x 1753 mm | 1860 x 1753 mm | 1860 x 1753 mm |
Compression force | 340 kN | 340 kN | 340 kN |
Time taken for compression action | 40 s | 40 s | 40 s |
Motor rating | 5,5 kW | 5,5 kW | 5,5 kW |
Slow fuse | 16 A | 16 A | 16 A |
Unloaded weight | 4797 kg | 5097 kg | 5397 kg |
Cone | 3 x 100 mm | 3 x 100 mm | 3 x 100 mm |

Videos

MULTIPRESS PressContainer 2016 [english]

PÖTTINGER MULTIPRESS PressContainer 2016 [deutsch]

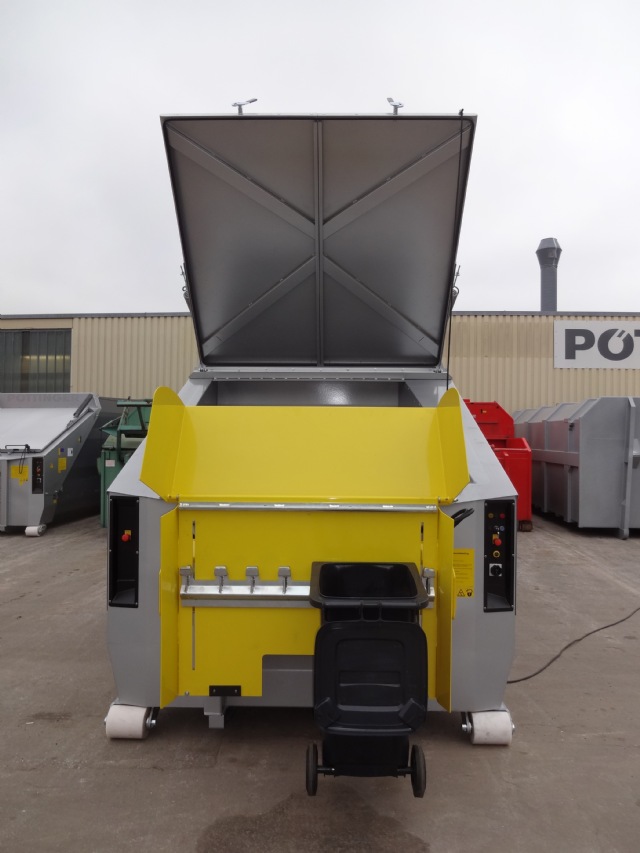

Pöttinger Entsorgungstechnik Kamm mit 1100 Liter Behälter
